AutoAnalyzer for Drugs, Enzymes & Biochemical Investigations

CE ISO9001:2000 ISO13485:2003 Approved

Features

• Big Wide Touch Panel Display
• Inbuilt 20 position incubator
• Temperature 25 Degree, 30 Degree, 37 Degree Celcius
• Facility for End Point, Fixed Time, Multistandard
• Differential, Biochromatic, and Immunoturbidimetric.
• Measuring Range 0-3.000 OD
• Over 200 Programs
• 1000 Test result storage capacity
• Windows XP/2000 Software (Optional)
• Facility for Manual Cuvette Mode
• Real-time graph display
• New improved user-friendly Software

Technical Specifications:

Reading: Both flow-through cell & direct cuvette.

Aspiration Volume: 200μl - 800μl

Incubator: 20 Incubating Positions

Light Source: 6V/10W halogen lamp

Wavelength Accuracy: - 2nm

Temperature: 25 Degree C, 30 Degree C, 37 Degree C

Temperature Precision: -0.1 Degree C

Method: End Point, Fixed time, Multi-Standard, Differential, Bichromatic, and Immunoturbidimetric

Measuring Range: 0~3.000 O.D.

Measuring Linearity: -2% (0~3.000 O.D.)

Photometric Linearity: -1% (0~3.000 O.D.)

Carry-Over: <1%

Drift: <0.005 O.D./hr

Quality Control: Excellent Q.C. function, Q.C. chart may be displayed and printed

Display: Back-illuminated LCD

Storage: Over 200 programs

Data Storage: 1000 test result

Printer: Built-in Thermal Printer

Software: Window XP/2000 (Optional)

Power Supply: Ac 110V/60Hz or 220V/50Hz

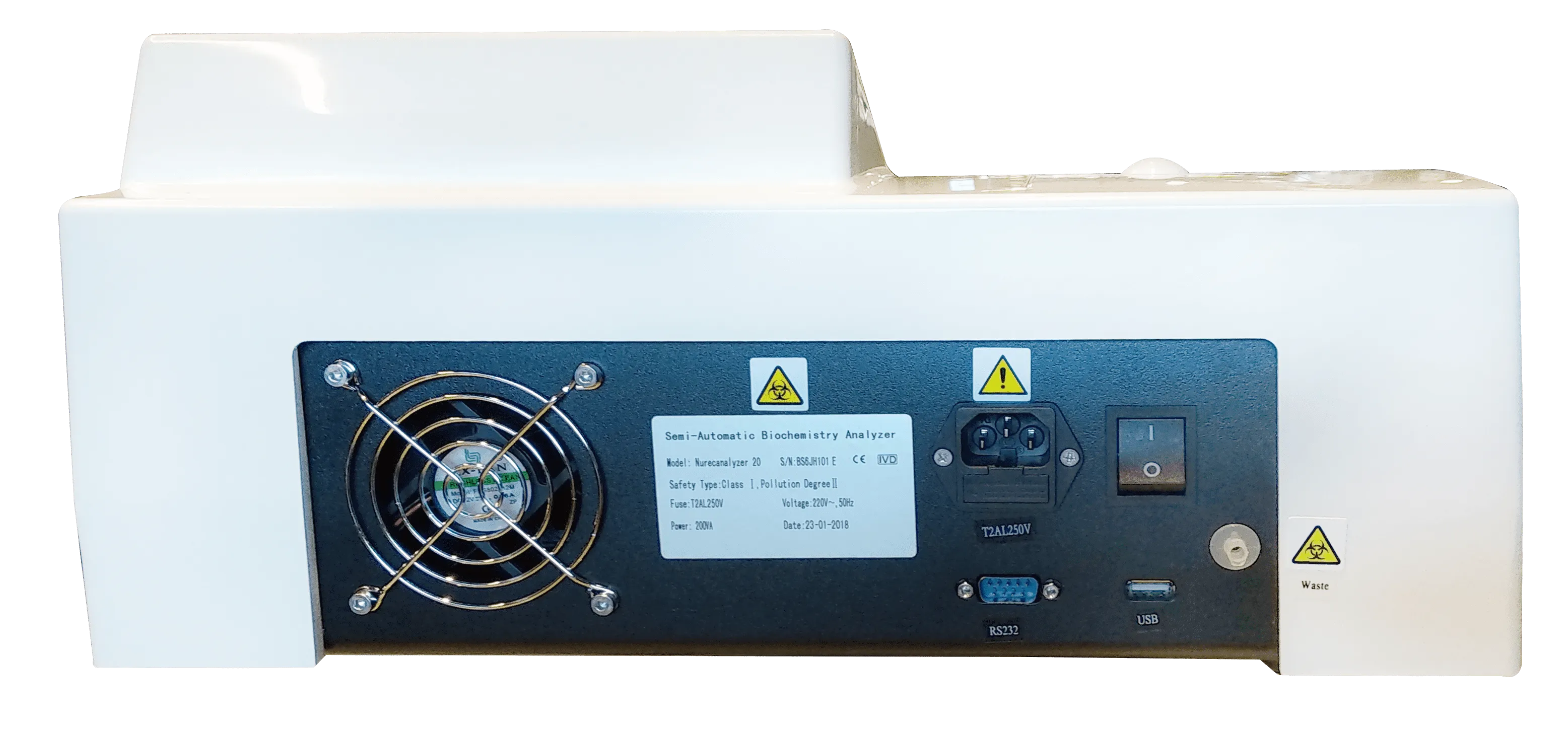

Interface: RS-232 Serial port for additional PC

Dimensions: 34cm X 38cm X 18 cm

Weight: 8.0 Kg
