Product Details

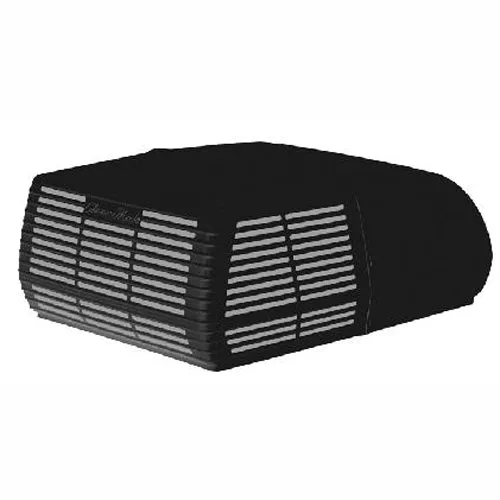

＋Coleman 48203-669 Mach 3 Plus Air Conditioner Upper Unit Black 13500 BTU Trailer Camper RV
The worlds over-the-road bestseller.
As the best-selling RV air conditioner in the world, the Mach 3 PLUS is also one of the best air conditioning values available. Featuring a large evaporator and condenser coils with raised lance fins to help dissipate heat, the Mach 3 PLUS has a solid 13,500 nominal BTU cooling capacity and delivers 320 CFM (cubic feet per minute) or 543.7 CMH (cubic meters per hour) airflow.
You can count on the Mach 3 PLUS for reliability. All-copper tubing and gas-flux brazed joints ensure durability and long life for your RV air conditioner.
Add the optional Heater Assembly, and youll also have 5,600 BTUs of heat for cool-weather outings.
Use time delay fuse or circuit breaker (U.L. H.A.C.R. Type C.S.A.) Rated at 20 amps. Supply wires 12 AWG Min. (Copper)
Coleman RV Air Conditioner Other Information:
2 speed fan
115 Volts AC power
2 years parts and labor warranty...be sure and send in the warranty card.
Easy installation into standard 14" roof vent.
NOTE: You MUST purchase both an Upper Unit and a Ceiling Assembly for a complete system! These are sold as separate part numbers.
Specifications:
The worlds over-the-road bestseller.
As the best-selling RV air conditioner in the world, the Mach 3 PLUS is also one of the best air conditioning values available. Featuring a large evaporator and condenser coils with raised lance fins to help dissipate heat, the Mach 3 PLUS has a solid 13,500 nominal BTU cooling capacity and delivers 320 CFM (cubic feet per minute) or 543.7 CMH (cubic meters per hour) airflow.
You can count on the Mach 3 PLUS for reliability. All-copper tubing and gas-flux brazed joints ensure durability and long life for your RV air conditioner.
Add the optional Heater Assembly, and youll also have 5,600 BTUs of heat for cool-weather outings.
Use time delay fuse or circuit breaker (U.L. H.A.C.R. Type C.S.A.) Rated at 20 amps. Supply wires 12 AWG Min. (Copper)
Coleman RV Air Conditioner Other Information:
2 speed fan
115 Volts AC power
2 years parts and labor warranty...be sure and send in the warranty card.
Easy installation into standard 14" roof vent.
NOTE: You MUST purchase both an Upper Unit and a Ceiling Assembly for a complete system! These are sold as separate part numbers.
Specifications:
- Nominal BTU Cooling Capacity: 13500
- Locked Rotor Cooling Amps: 63
- Running Watts/Cooling: 1650
- Running Watts/Cooling: 1900
- Running Watts/Heating: 1800
- Electrical Rating: 115V 60Hz 1Phase
- Delivered BTU Heating Output: 5600
- Approximate Full-Load Amps/Cooling: 15.3
- Approximate Full-Load Amps/Heating: 16
- Evaporator Air Delivery CFM (high speed): 320
- Unit Weight (lbs.): 79.5
